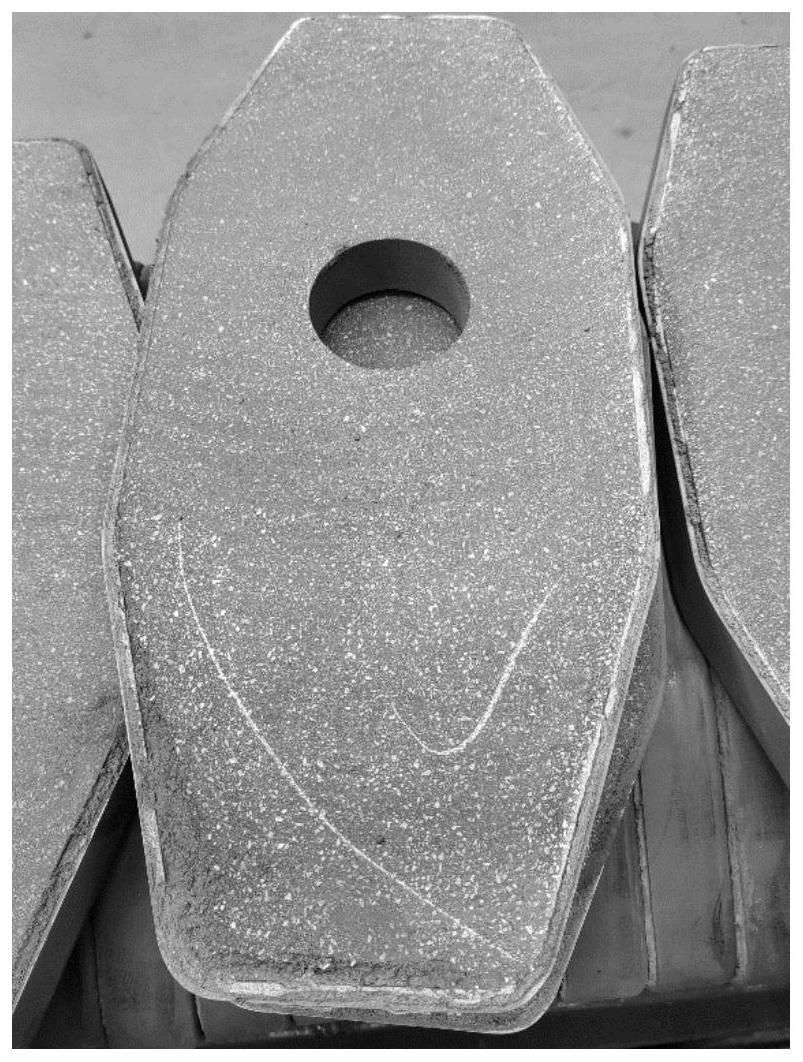

Slide gate plate is the core functional refractory of ladle and tundish slide gate systems, offering high strength, high density, excellent erosion and thermal shock resistance for precise molten steel flow control.
| Al2O3 content (Al2O3-C) | ≥ 75% |
|---|---|
| ZrO2 content (Al2O3-ZrO2-C) | 5%～8% |
| C content | ≥ 5% |
| Bulk density | ≥ 3.00 g/cm³ |
| Apparent porosity | ≤ 10% |
| CCS | ≥ 100 MPa |
| Surface flatness | ＜ 0.1 mm |
| Service temperature | ≥ 1700℃ |
The slide gate plate is the core refractory functional component installed in a slide gate system. Driven by hydraulic or mechanical mechanism, the plate slides back and forth to open, close and regulate molten steel flow from ladles and tundishes. Service conditions are extremely severe: the plate withstands molten steel scouring, rapid thermal cycling, slag attack and repeated mechanical stress. Henan Songrui New Refractory Materials Co., Ltd. produces high-alumina, alumina-carbon (Al2O3-C) and alumina-zirconia-carbon (Al2O3-ZrO2-C) slide plates, manufactured from high-purity raw materials by isostatic/mechanical pressing and high-temperature firing. They feature high surface flatness, dense structure and excellent erosion and thermal shock resistance, suitable for single-heat and multi-heat continuous casting and various steel grades.
Al2O3-C plates are cost-effective and suit ordinary steel grades for multi-heat service; Al2O3-ZrO2-C plates offer better erosion and thermal shock resistance, ideal for high-alloy steel, severe conditions and longer sequence casting.
At teeming start the cold plate meets molten steel suddenly, generating thermal stress; uneven sliding face or insufficient clamping pressure also causes stress concentration. Proper preheating and installation significantly reduce cracks.
Yes. Henan Songrui New Refractory Materials Co., Ltd. customizes plate bore, dimensions and thickness by slide gate mechanism model, and provides matched upper/lower nozzle solutions.
Yes. Tundish slide gate plates are similar to ladle plates; Al2O3-C or Al2O3-ZrO2-C grades can be selected and customized by tundish mechanism.
Submit an inquiry or custom requirement for this product; reply within 24 hours
