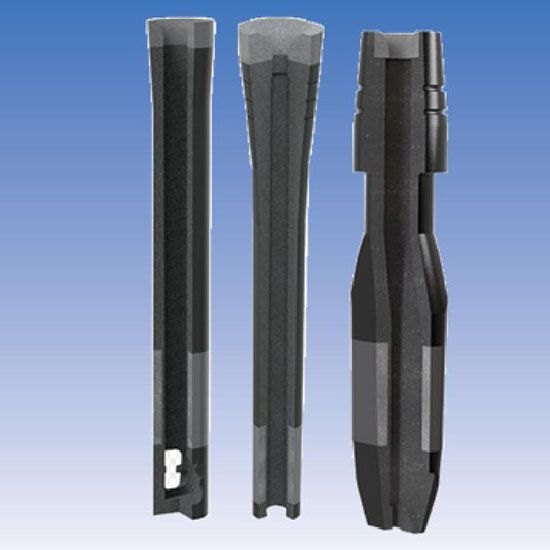

Ladle shrouds and submerged entry nozzles are key functional refractories in continuous casting. They protect the steel stream against reoxidation and control mould flow. Alumina-carbon body with ZrO2 slag line resists slag, prevents clogging and sustains multi-heat sequences.
| Al₂O₃ (body) | 40 – 45% |
|---|---|
| C+SiC (body) | 22 – 25% |
| ZrO₂ (slag line) | 60 – 75% |
| Bulk density | ≥ 2.25 g/cm³ |
| CCS | ≥ 22 MPa |
| Apparent porosity | ≤ 23% |
| Thermal shock (1100℃ water) | ≥ 5 次 |
| Service temperature | ≥ 1550℃ |
Mounted below the ladle, the shroud protects the steel stream from the ladle to the tundish. It prevents reoxidation and nitrogen pickup, improves steel cleanliness in the tundish, and suppresses splashing and slag entrapment at the tundish bath surface. The alumina-carbon body with a zirconia (ZrO₂ ≥ 60%) slag line resists ladle slag and tundish flux attack with low erosion rate.
The SEN is installed at the tundish bottom and extends below the mould level. Besides preventing reoxidation, its outlet ports distribute steel evenly to control flow pattern, reduce impact depth and promote inclusion flotation for uniform shell growth. The alumina-carbon body with a ZrO₂ (60–75%) slag line, plus anti-clogging interior design, extends sequence length. Grades include fast preheating, carbon-free, silicon-free, Mn-steel, thin-slab, bent and special-section nozzles.
Choose grades by steel grade and caster type; fast preheating nozzles shorten start-up time. Preheat according to procedure to avoid thermal spalling, keep alignment to prevent biased flow, and monitor slag-line wear and clogging during sequences for planned replacement.
Henan Songrui New Refractory Materials Co., Ltd. provides grades and drawings customized for steel grades and caster types.
Al₂O₃ deoxidation products adhere to the inner wall. Optimized bore materials and structure, argon blowing and calcium treatment reduce clogging and extend sequence length.
Yes. Length, bore diameter, outlet form and slag-line materials are customized for mill conditions, with grade and drawing proposals provided.
